PTFE (Teflon) CNC Machining Services | AluCarbon Tech

Precision Custom PTFE Parts: Extreme Chemical Inertness, Ultra-Low Friction & Thermal Stability up to 260°C

PTFE (Polytetrafluoroethylene), commercially recognized as Teflon, represents the pinnacle of high-performance fluoropolymers across global semiconductor, chemical processing, and aerospace manufacturing sectors. Boasting an elite continuous operating temperature of up to 260°C (500°F), absolute chemical inertness to universal solvents, and an exceptionally low coefficient of friction, machined PTFE is the definitive choice for critical sealings and high-frequency insulation. At AluCarbon Tech, we specialize in high-precision multi-axis CNC milling and high-speed turning of both virgin PTFE and specialized reinforced modifications (Glass-filled, Carbon-filled). By employing ultra-sharp, diamond-polished positive-rake tooling configurations combined with cryo-stabilized stress-relieving machining techniques, we completely master the high thermal expansion and creeping vulnerabilities of fluoropolymers, delivering flawless, burr-free custom PTFE components with strict dimensional fidelity.

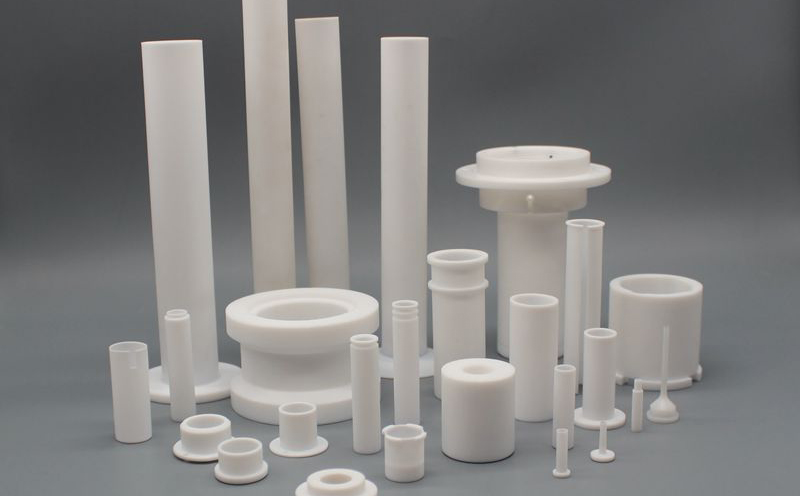

PTFE(Teflon)

PTFE(Teflon)

Why Choose AluCarbon Tech for PTFE (Teflon) CNC Machining

  • Elite Thermal Range Enduring: Outstanding performance reliability spanning from cryogenic extremes up to 260°C continuous thresholds.
  • Absolute Universal Chemical Resistance: Completely inert to aggressive acids, reactive chemical bases, alkalis, and complex organic solvents.
  • Unrivaled Slip & Coefficient of Friction: Phenomenal natural lubricity that prevents component wear and eliminates ‘stick-slip’ mechanical lag.
  • Cryo-Stabilized Anti-Deformation Cutting: Advanced temperature control methodologies to stop material deformation and cold-creep during machining.
  • Specialized Burr Elimination Technology: Utilizing custom ultra-sharp, micro-polished single-point tools to slice cleanly through ductile fluoropolymers.
  • ISO 9001:2015 High-Purity Workcenters: Dedicated, oil-free machining environments ensuring zero chemical contamination for critical medical and semiconductor components.

Product Description

PTFE Material Selection & Grade Guide

PTFE Material Grade Key Material Characteristics Target Application Environments
Virgin PTFE FDA-compliant, 100% pure fluoropolymer with maximum electrical insulation, universal chemical passivity, and lowest friction. Semiconductor fluid manifolds, medical diagnostics components, food-grade seals, chemical laboratory fittings.
Glass-Filled PTFE (15% - 25%) Significantly enhanced structural rigidity, dramatically lowered cold-creep distortion, and superior wear resistance under load. Industrial pump gaskets, high-load valve seats, mechanical bearings, chemical engineering support wear rings.
Carbon-Filled PTFE Superb thermal conductivity, self-lubricating dry properties, enhanced compressive strength, and static-dissipative capabilities. Piston rings, dynamic fluid seals, aerospace fuel system components, static control electrical components.

Common Applications for Machined PTFE Components

Industry Key Components
Semiconductor & Chemical Liquid Processing High-purity fluidic manifolds, chemical isolation valves, corrosive-media seals, and wafer handling components.
Aerospace & High-Frequency Electronics Coaxial connector insulators, high-temperature wire guides, radar dielectric substrates, and dynamic fuel-line seals.
Medical & Clinical Laboratory Systems Non-contaminating fluidic distribution valves, custom diagnostic plungers, and implantable-grade component mockups.
Sim Racing & Premium Industrial Mechanisms Premium ultra-smooth slider bushings, zero-play dynamic pivot washers, and high-temperature insulation spacers.

Frequently Asked Questions (FAQ)

Q: What makes PTFE incredibly challenging to machine, and how does AluCarbon Tech control dimensional accuracy?
A: PTFE is extremely soft, highly ductile, and exhibits a high coefficient of thermal expansion alongside a tendency for 'cold creep' (deforming under physical pressure). During standard machining, it easily distorts away from the cutting tool, resulting in heavy burrs and unstable tolerances. AluCarbon Tech overcomes this by implementing cryo-stabilized stock conditioning and utilizing custom micro-polished, large positive-rake single-point diamond or carbide tooling. Combined with ultra-precise light cut depths and synchronized high feed rates, we eliminate stringy burrs and prevent part flexing, ensuring production tolerances remain tightly held within ±0.05 mm.
Q: When should I choose Virgin PTFE over Reinforced (Filled) PTFE?
A: Virgin PTFE is the definitive choice for applications requiring maximum purity, FDA food/medical compliance, elite dielectric insulation, and absolute universal chemical immunity. However, if your component must withstand continuous physical loading, friction, or requires high dimensional stiffness, we suggest upgrading to Glass-Filled or Carbon-Filled PTFE to drastically minimize cold creep and dynamic wear.
Q: Does machined PTFE require specific coolant fluids during multi-axis milling?
A: PTFE has remarkable thermal insulation properties, meaning cutting friction heat transfers directly into the tooling and the localized workpiece zone. To prevent thermal expansion errors, strict temperature management is critical. At AluCarbon Tech, we utilize clean high-pressure dry air blast systems or pure, non-contaminating water-based coolants to ensure zero material staining and maintain pristine chemical purity for semiconductor/medical parts.
Q: Do you enforce minimum order quantities (MOQ) for custom engineered PTFE components?
A: AluCarbon Tech supports engineering and procurement teams globally with zero MOQ restrictions. We seamlessly manufacture everything from a single high-accuracy functional seal prototype to large commercial production runs exceeding 1,000+ custom batches.
